HYDRAULIC ROTARY ACTUATOR FOR TILTING COUPLERS
SPECIFICATIONS OF WP SERIES
TECHNICAL PARAMETERS
|
MODEL |
EXCAVATOR WEIGHT (I) |
DRIVEING TORQUE (NM) |
HOLDING TORQUE (NM) |
WEIGHT (KG) |
DISPLACEMENT (CC) |
FL0W (L/ MIN) |
ROTATION ( ° ) |
|
WP-009-180 |
1.8 |
900 |
2400 |
21 |
234 |
2-4 |
180 |
|
WP-028-180 |
4.8 |
2800 |
6800 |
65 |
688 |
5-16 |
|
|
WP-047-180 |
6.8 |
4700 |
12000 |
84 |
1180 |
11-32 |
|
|
WP-073-180 |
9.1 |
7300 |
18000 |
135 |
1870 |
15-44 |
|
|
WP-105-140 |
13 |
10500 |
26000 |
210 |
2086 |
19-58 |
140 |
|
WP-140-140 |
20 |
14000 |
35000 |
270 |
2754 |
26-78 |
|
|
WP-180-140 |
27 |
18000 |
46000 |
320 |
3618 |
35-105 |
|
|
WP-240-140 |
34 |
24000 |
59000 |
420 |
4668 |
45-136 |
MOUNTING DIMENSIONS
|
MODEL |
LI (MM) |
12 (MM) |
L3 (MM) |
L4 (MM) |
L5 (MM) |
L6 (MM) |
M |
Hl (MM) |
H2 (MM) |
WI (MM) |
W2 (MM) |
W3 (MM) |
|
WP-009-180 |
216 |
12.7 |
12.7 |
14.3 |
211 |
25.4 |
25.4 |
104 |
88.9 |
96 |
96 |
160 |
|
WP-028-180 |
318 |
37 |
22 |
54 |
238 |
26 |
26 |
130 |
113 |
154 |
154 |
240 |
|
WP-047-180 |
387 |
38 |
25 |
70 |
288 |
31 |
31 |
150 |
125 |
154 |
185 |
275 |
|
WP-073-180 |
454 |
38 |
32 |
75 |
345 |
32 |
32 |
170 |
140 |
190 |
206 |
325 |
|
WP-105-140 |
536 |
44 |
32 |
64 |
437 |
38 |
38 |
175 |
151 |
228 |
280 |
420 |
|
WP-140-140 |
533 |
51 |
38 |
80 |
408 |
44 |
44 |
187 |
160 |
254 |
292 |
445 |
|
WP-180-140 |
640 |
50 |
38 |
96 |
496 |
49 |
49 |
225 |
190 |
267 |
305 |
430 |
|
WP-240-140 |
640 |
57 |
44 |
96 |
492 |
57 |
57 |
241 |
205 |
267 |
318 |
530 |
*Specification charts are for general reference only,please consult drawing for actual values and tolerances.
SPECIFICATIONS 0FWT SERIES
TECHNICAL PARAMETERS
|
MODEL |
EXCAVATOR WEIGHT (T) |
DRIVEING TORQUE (NM) |
HOLDING TORQUE (NM) |
WEIGHT (KG) |
DISPLACEMENT (CC) |
FL0W (L/ MIN) |
ROTATION 1 ° ) |
|
WT-016-180 |
3 |
1630 |
6425 |
38 |
623 |
6-19 |
180 |
|
WT-026-180 |
5 |
2600 |
9350 |
56 |
836 |
9-28 |
|
|
WT-043-180 |
7 |
4375 |
14850 |
96 |
1200 |
13-38 |
|
|
WT-070-180 |
10 |
6650 |
20450 |
137 |
2065 |
19-58 |
|
|
WT-130-120 |
18 |
13300 |
40725 |
253 |
2598 |
26-78 |
120 |
|
WT-180-120 |
24 |
17875 |
53100 |
357 |
3474 |
35-105 |
|
|
WT-250-120 |
32 |
24900 |
70330 |
450 |
4730 |
47-142 |
|
|
WT-450-120 |
50 |
15000 |
11800 |
574 |
12000 |
54-162 |

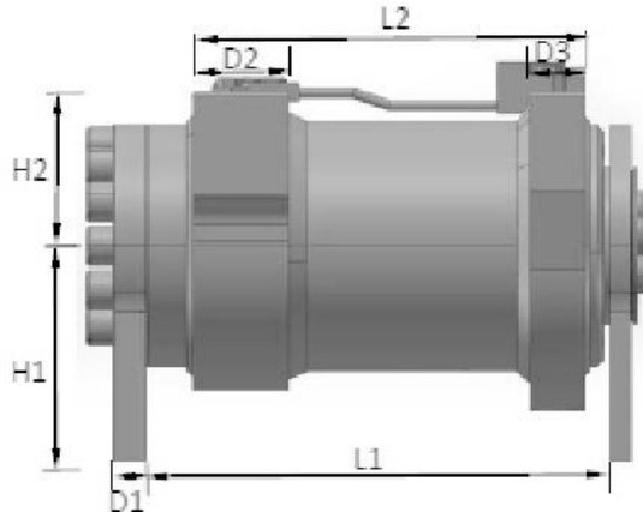

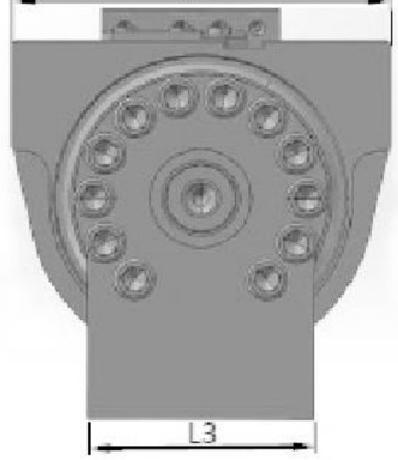

MOUNTING DIMENSIONS
|
MODEL |
LI (MM) |
12 ( MM) |
L3 (MM) |
L4 (MM) |
Dl (MM) |
D2 (MM) |
D3 (MM) |
HI (MM) |
H2 (MM) |
|
WT-016-180 |
242.1 |
217.1 |
120 |
190 |
19.1 |
55.9 |
31.8 |
110 |
82 |
|
WT-026-180 |
271.1 |
229 |
130 |
218 |
19.1 |
55.9 |
31.8 |
130 |
93 |
|
WT-043-180 |
342 |
290 |
160 |
254 |
25 |
63 |
43 |
145 |
114 |
|
WT-070-180 |
377 |
323 |
185 |
280 |
30 |
63 |
45 |
160 |
120 |
|
WT-130-120 |
400 |
378 |
273 |
381 |
35 |
82 |
51 |
180 |
145 |
|
WT-180-120 |
491 |
429 |
303 |
465 |
40 |
82 |
57 |
200 |
158 |
|
WT-250-120 |
520 |
468 |
320 |
480 |
45 |
82 |
57 |
210 |
165 |
|
WT-450-120 |
623 |
535 |
400 |
550 |
55 |
73 |
73 |
346 |
277 |
*Specification charts are for general reference only,please consult drawing for actual values and tolerances.
SPECIFICATIONS WEITAI 0F WBV SERIES
TECHNICAL PARAMETERS
|
MODEL |
EXCAVATOR WEIGHT (T) |
PRESSURE (BAR) |
HOLDING TORQUE (NM) |
WEIGHT (KG) |
DISPLACEMENT (CC) |
FLOW (L /MIN) |
ROTATION ( ° ) |
|
WBV-085-180* |
1.8 |
210 |
2000 |
16.8 |
238 |
2-4 |
180 |
|
WBV-100-180 |
2.5 |
210 |
2100 |
20 |
323 |
2-4 |
|
|
WBV-115-180 |
2.3-4.2 |
210 |
4300 |
49 |
513 |
5-10 |
|
|
WBV-125-180 |
4-6.2 |
210 |
8200 |
61 |
840 |
8-12 |
|
|
WBV-130-180 |
6-7.5 |
210 |
11000 |
68 |
1045 |
10-15 |
|
|
WBV-160-180 |
7.3-10 |
210 |
17500 |
102 |
2064 |
20-25 |
|
|
WBV-240-140 |
11-16 |
210 |
34000 |
186 |
2519 |
25-30 |
140 |
|
WBV-250-140 |
15-23 |
210 |
40000 |
236 |
2686 |
25-30 |

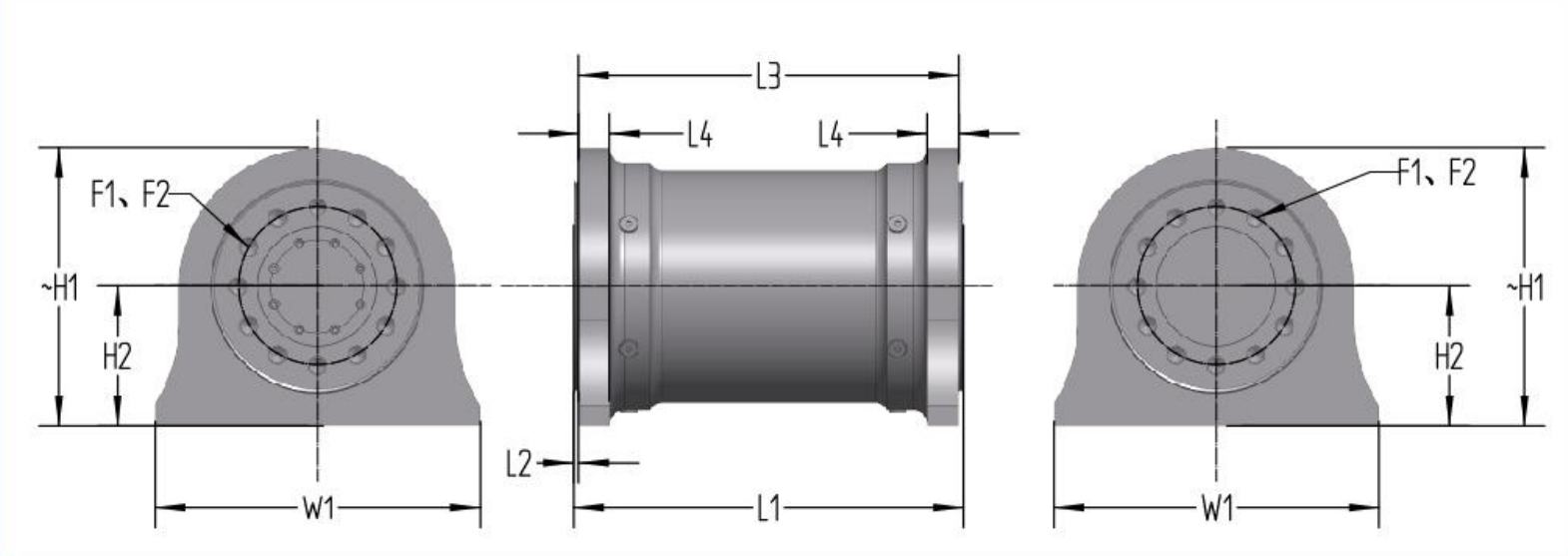

MOUNTING DIMENSIONS
|
MODEL |
L1 (MM) |
12 (MM) |
L3 (MM) |
L4 (MM) |
HI (MM) |
H2 (MM) |
WI (MM) |
F (MM) |
F2 (MM) |
PORT (BSPP) |
|
WBV-085-180* |
194 |
3 |
188 |
20 |
152 |
77 |
164 |
85 |
12-M10 |
1/8 |
|
WBV-100-180 |
245 |
5 |
235 |
20 |
152 |
77 |
150 |
85 |
12-M10 |
1/4 |
|
WBV-115-180 |
344 |
8 |
328 |
30 |
187 |
95 |
220 |
102 |
12-M10 |
1/4 |
|
WBV-125-180 |
277 |
5 |
275 |
30 |
232 |
120 |
275 |
130 |
16-M12 |
1/4 |
|
WBV-130-180 |
345 |
5 |
335 |
30 |
227 |
115 |
270 |
130 |
12-M16 |
1/4 |
|
WBV-160-180 |
383 |
5 |
373 |
35 |
266 |
133 |
300 |
155 |
12-M20 |
3/8 |
|
WBV-240-140 |
412 |
5 |
402 |
38 |
328 |
165 |
390 |
200 |
12-M20 |
3/8 |
|
WBV-250-140 |
430 |
5 |
420 |
40 |
178 |
353 |
412 |
200 |
12-M24 |
3/8 |
The integrated relief valve is available for all models except WBV-085-180.
