A Hydraulic Tilt Coupler adds side-to-side attachment movement between the excavator arm and the bucket or tool, allowing operators to change the working angle without repeatedly repositioning the entire machine. This becomes especially useful when the job involves slopes, irregular surfaces, narrow trenches, obstacles, or frequent angle changes.
The value of a tilt coupler is not simply that the bucket can tilt. Its real advantage appears when that extra movement removes unnecessary machine repositioning from the work cycle. Grading, trenching, utility work, road maintenance, and landscaping are typical examples where attachment angle can directly affect working efficiency. WEITAI also identifies finish grading, underground utilities, road construction and maintenance, trench work, landscaping, brush cutting, and material placement among typical PowerTilt applications.
1. Finish Grading with Fewer Machine Repositions
Finish grading is one of the clearest Hydraulic Tilt Coupler applications because surface accuracy often depends on the relationship between the bucket edge and the ground. With a fixed coupler, the operator may need to reposition the tracks or rotate the upper structure simply to maintain the correct cutting angle across changing terrain.
A hydraulic tilt coupler allows the bucket to follow the surface more naturally from the same machine position. This can be particularly useful when working beside curbs, foundations, drainage areas, or uneven ground where repeated repositioning interrupts the grading pass. The benefit is not necessarily faster digging; it is fewer corrections between productive passes.
For contractors doing frequent finishing work, this additional angle control can make a standard excavator more adaptable without requiring a full tiltrotator system.
2. Slope Shaping and Bank Finishing
Slope work rarely follows the straight working plane of a fixed bucket. Road embankments, drainage slopes, landscape contours, and site edges often require the bucket cutting edge to remain at an angle relative to the machine.
A Hydraulic Tilt Coupler for excavator applications allows the attachment angle to change while the excavator stays on a more stable working position. Instead of repeatedly moving the machine sideways to follow the slope, the operator can make smaller hydraulic adjustments at the attachment.
This is especially useful when creating or cleaning a consistent slope. The coupler does not replace proper machine positioning or operator control, but it adds another degree of movement that can reduce how often the entire excavator must be repositioned.
3. Trench Cleaning and Shaping
Digging the main trench is only part of trench work. The sidewalls, bottom profile, drainage angle, and material around the trench often require more precise bucket positioning.
With a fixed attachment, maintaining the correct angle along one side of a trench may require the machine to move repeatedly. A tilt coupler allows the bucket to work at an angle while the excavator remains more closely aligned with the trench.
This is useful for cleaning trench edges, shaping drainage channels, correcting uneven trench bottoms, and working where the machine cannot sit directly in line with the required cut. WEITAI’s own tilt coupler application material also identifies trenching and work in confined areas as typical situations where attachment tilt improves flexibility.
4. Underground Utility Installation
Utility work often combines restricted space with the need for careful material removal around pipes, cables, or existing infrastructure. In these environments, moving the entire excavator to obtain a slightly different bucket angle may be difficult or unnecessary.
A Hydraulic Tilt Coupler allows the operator to adjust the attachment to approach the work area from a better angle. That can help during trench preparation, bedding work, shaping around pipes, and controlled backfilling where the bucket position needs to change more often than the excavator itself.
The advantage becomes more significant when obstacles limit machine positioning. The ability to adjust the tool rather than repeatedly adjust the carrier can make the work sequence more direct.
5. Road Construction and Maintenance
Roadside work involves many surfaces that are not level with the excavator. Shoulders, drainage channels, roadside banks, curb areas, and transitions between paved and unpaved surfaces all require different working angles.
A Power Tilt Coupler gives the operator more control over the bucket orientation while the machine remains positioned on the road or adjacent working area. This can help with shoulder shaping, ditch maintenance, edge cleanup, and localized grading.
For municipal and road-maintenance equipment, the benefit is flexibility across several tasks rather than specialization for one operation. A single excavator can handle more angled work without changing the entire machine position every time the surface changes.
6. Landscaping and Contour Work
Landscaping often requires controlled shaping rather than heavy excavation. Creating drainage contours, shaping garden slopes, finishing around paths, and preparing irregular terrain all depend on small changes in bucket angle.
A fixed bucket can complete these jobs, but the machine may need to move more frequently to achieve the required contour. With a Hydraulic Tilt Coupler, the operator can adjust the attachment angle directly and work around existing features more easily.
This is also useful when the jobsite has limited space around walls, trees, fences, or completed structures. The additional tilt range gives the excavator more flexibility without requiring the continuous rotation of a Tilt Rotator.
7. Material Placement and Cleanup Around Obstacles
Not every excavator task involves cutting soil. Backfilling, spreading aggregate, placing fill material, clearing around structures, and working beside obstacles often require the bucket to approach material from an angle.
A tilt coupler can make these tasks easier by changing the relationship between the bucket and the machine. Instead of repeatedly repositioning the excavator to place or clean material at the correct angle, the attachment can make part of that adjustment hydraulically.
This is particularly useful on compact jobsites where machine movement is restricted. The result is not simply greater attachment movement, but better use of the space already available to the excavator.
When Is a Hydraulic Tilt Coupler More Practical Than a Tilt Rotator?
A Hydraulic Tilt Coupler is often the more direct solution when the main requirement is side-to-side angle adjustment. If the job mainly involves grading, slopes, trenching, landscaping, road maintenance, or utility work, continuous 360-degree rotation may not be necessary.
A Tilt Rotator becomes more relevant when attachment direction changes as frequently as attachment angle. However, that additional movement also brings more system complexity and typically more integration requirements. For applications where tilt alone removes most of the unnecessary machine repositioning, a Hydraulic Tilt Coupler can provide the required flexibility with a simpler working concept.
WEITAI Hydraulic Tilt Coupler Solutions

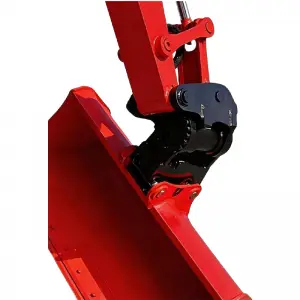

For excavator applications requiring hydraulic tilt, WEITAI provides WPT Power Tilt solutions for different attachment configurations. The WPT07 Hydraulic Tilt Coupler is designed for excavators up to approximately 7,000 kg and provides 180° total tilt, with an integral rotary union, integrated cross-port relief protection, and different coupler configuration options.
For OEM and replacement projects, the final coupler should be matched to the excavator rather than selected only by machine tonnage. Mounting interface, pin dimensions, hydraulic pressure and flow, quick-coupler arrangement, attachment type, and actual job requirements should all be confirmed before final selection.
Companies looking for a Hydraulic Tilt Coupler supplier in China, Power Tilt manufacturer, OEM solution, or replacement coupler can provide machine and attachment information to WEITAI for technical matching.
Conclusion
The most useful Hydraulic Tilt Coupler applications are jobs where attachment angle changes frequently but moving the entire excavator each time adds unnecessary work. Finish grading, slope shaping, trenching, underground utilities, road maintenance, landscaping, and material placement all benefit from being able to adjust the bucket independently of the carrier.
The right solution still depends on the machine and working conditions. Excavator size, hydraulic capacity, mounting structure, required tilt range, and attachment configuration should be confirmed before selecting a Power Tilt system.
Contact WEITAI for Hydraulic Tilt Coupler Selection and Quotation
If you need a Hydraulic Tilt Coupler for excavator, Power Tilt replacement, OEM attachment solution, or long-term Hydraulic Tilt Coupler supplier in China, WEITAI can support model selection and project matching.
Provide the excavator brand and model, machine weight, stick and pin dimensions, hydraulic pressure and flow, quick-coupler configuration, attachment type, and required quantity. Based on this information, the appropriate configuration can be evaluated and a Hydraulic Tilt Coupler quotation prepared.
Send your excavator and attachment information to WEITAI to confirm compatibility and request a quotation.
FAQ
How much does a Hydraulic Tilt Coupler cost?
Hydraulic Tilt Coupler price depends on excavator size, mounting interface, hydraulic configuration, coupler type, tilt requirements, customization, and quantity. Accurate pricing requires the machine and attachment specifications to be confirmed first.
How can I get a Hydraulic Tilt Coupler quotation?
To request a Hydraulic Tilt Coupler quotation, provide the excavator model, machine weight, pin and mounting dimensions, hydraulic pressure and flow, current coupler arrangement, and quantity. Photos or drawings can also help with replacement matching.
Where can I find a Hydraulic Tilt Coupler supplier in China?
WEITAI provides Power Tilt and Hydraulic Tilt Coupler solutions for excavator applications, including OEM, replacement, and distributor projects. Final configuration should be matched to the machine interface and hydraulic conditions rather than selected only from excavator tonnage.
Does WEITAI support OEM Hydraulic Tilt Coupler projects?
Yes. WEITAI supports OEM Power Tilt and Hydraulic Tilt Coupler projects based on excavator size, mounting structure, hydraulic requirements, coupler configuration, and application needs.
