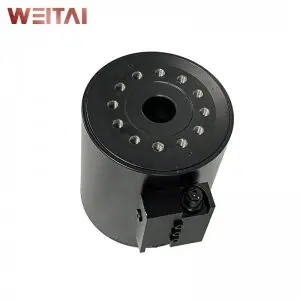

The WL10 Series 360 degrees hydraulic rotary actuator is designed to deliver high-performance rotational motion in compact industrial systems where torque strength, durability, and installation efficiency must be balanced within limited space. With torque capability up to 2,700 N·m, the WL10 Series is engineered for a wide range of mechanical applications that require stable continuous rotation, precise positioning, and long-term operational reliability.
Unlike traditional mechanical rotation systems that rely on bearings, linkages, and external braking components, the WL10 Series integrates motion control directly into a hydraulic structure, which significantly reduces system complexity while improving performance consistency in demanding environments.
Why Is High Torque Capability Important in a Compact Rotary Actuator?
In industrial motion systems, torque output determines whether equipment can handle real working loads without performance loss or mechanical stress. The WL10 Series is designed with a high torque density structure that enables powerful output even in compact installation environments.
● The actuator delivers up to 2,700 N·m of torque, making it suitable for most medium-duty industrial rotation tasks across different industries.
● High torque density allows smaller actuator size while maintaining strong mechanical performance under continuous load conditions.
● Stable hydraulic pressure distribution ensures consistent rotational force even when external resistance changes during operation.
● This makes the WL10 Series suitable for equipment where space is limited but performance requirements remain high.
Durable Construction Designed for Harsh Working Environments
Industrial equipment often operates in environments where mechanical components are exposed to vibration, shock loading, moisture, dust, and temperature fluctuations. The WL10 Series is constructed using high-hardness forged steel to ensure long-term durability under these demanding conditions.
● Forged steel housing provides strong resistance against deformation under high-pressure hydraulic operation.
● Structural reinforcement improves impact resistance in applications involving repetitive motion and load variation.
● High-strength internal components ensure stable performance even in continuous-duty industrial cycles.
● The design reduces wear over time, improving overall service life and reliability in harsh environments.
Compact Design for High Power Density Applications
Modern industrial systems increasingly require compact solutions that can deliver high performance without occupying excessive installation space. The WL10 Series addresses this requirement through a high power density design that integrates hydraulic rotation into a compact housing structure.
● Compact structure enables installation in tight mechanical spaces where traditional systems cannot fit.
● High power-to-size ratio allows designers to reduce machine footprint without compromising output capability.
● Simplified integration reduces assembly time and improves system layout efficiency.
● Ideal for mobile machinery and equipment where space optimization is critical.
How Does Position Holding Improve System Stability and Safety?
One of the key features of the WL10 Series is its ability to hold position without requiring external braking systems. This is achieved through zero internal leakage design, which ensures that the actuator maintains its position even under load conditions.
● Zero internal leakage helps maintain stable angular positioning during operation without drift or unwanted movement.
● Eliminates the need for external braking components, reducing system complexity and cost.
● Improves operational safety by ensuring controlled and predictable motion behavior.
● Enhances precision in applications where stable positioning is critical under load.
System Simplification and Reduced Mechanical Complexity
The WL10 Series is designed to simplify hydraulic system architecture by eliminating the need for multiple external mechanical components such as bearings, linkages, and mounting brackets. This contributes to lower system cost and improved reliability.
● Removal of bearings and linkages reduces the total number of failure-prone mechanical parts.
● Simplified system architecture reduces maintenance requirements and improves long-term reliability.
● Lower part count reduces manufacturing and assembly costs for equipment builders.
● More compact system design allows easier integration into modern industrial machinery.
Backdriving Behavior and Hydraulic Fuse Protection
The WL10 Series is designed with controlled backdriving capability under overload conditions, which enhances system safety and protects mechanical structures from damage during extreme operating events.
● Backdriving allows controlled motion response when external forces exceed normal operating limits.
● A hydraulic fuse function helps restrict or stop fluid flow during system overload or hydraulic breach conditions.
● This protective mechanism prevents mechanical damage and improves operational safety.
● Especially useful in applications where sudden load changes or impact forces may occur.
Where Is the WL10 Series Commonly Used?
Due to its combination of compact design, high torque output, and structural durability, the WL10 Series is widely used across multiple industrial sectors where controlled rotation is required.
● Mobile machinery where space is limited and high torque rotation is needed.
● Material handling systems requiring controlled angular movement under load.
● Agricultural machinery where durability and compact integration are important.
● Construction equipment with repetitive motion and heavy-duty operating cycles.
● Industrial automation systems requiring precise rotational control in compact assemblies.
Why Hydraulic Rotary Actuators Are Replacing Traditional Mechanical Systems
Hydraulic rotary actuators like the WL10 Series are increasingly replacing conventional mechanical rotation systems due to their efficiency and simplified architecture.
● They integrate motion generation and control into a single compact unit.
● They reduce mechanical wear by eliminating external transmission components.
● They provide smoother and more controllable motion under varying load conditions.
● They offer higher torque density compared to traditional mechanical systems.
FAQ
1. What is the maximum torque of the WL10 Series hydraulic rotary actuator?
The WL10 Series can deliver up to 2,700 N·m of torque, making it suitable for a wide range of industrial applications.
2. Why is forged steel used in the WL10 Series design?
Forged steel provides high strength, impact resistance, and durability, ensuring reliable performance in harsh working environments.
3. Does the WL10 Series require an external braking system?
No, due to its zero internal leakage design, it can hold position without requiring an external brake.
4. What is the advantage of hydraulic fuse protection?
The hydraulic fuse helps prevent mechanical damage by restricting fluid flow during overload or system failure conditions, improving overall safety.
