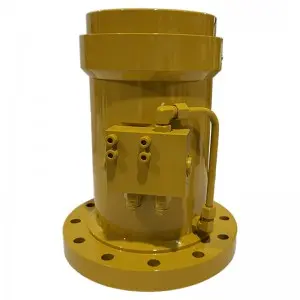

The WEITAI WL30 Series hydraulic rotary actuator is engineered specifically for demanding industrial environments where high torque output, long service life, and reliable rotational control are critical for machine performance. Designed as a heavy-duty helical rotary device, the WL30 Series delivers torque ranging from 1900 Nm up to 24000 Nm at 21 MPa, making it suitable for a wide variety of heavy machinery applications that require stable and powerful rotary motion under continuous load conditions.
Unlike conventional hydraulic cylinders that provide linear motion and require additional mechanical conversion systems, the WL30 Series integrates rotary motion directly into a compact hydraulic structure, which significantly improves system efficiency while reducing installation complexity and maintenance requirements in real-world industrial applications.
Built for Harsh Operating Environments and Continuous Heavy Loads
The WL30 Series is developed with a strong focus on durability and operational stability, making it suitable for environments where equipment is exposed to vibration, impact loading, temperature variations, moisture, dust, and continuous operation cycles. These conditions are common across industries such as mining, construction, agriculture, marine engineering, and heavy transport systems, where equipment reliability directly impacts productivity and operational safety.
● The helical gear structure inside the WL30 Series ensures smooth torque transmission even under fluctuating load conditions, reducing mechanical shock and improving rotational stability in demanding field operations.
● The reinforced housing design allows the actuator to withstand high external forces while maintaining internal alignment and long-term structural integrity in heavy-duty applications.
● The sealing system is optimized to prevent contamination from dust, water, and debris, which is essential for extending service life in harsh industrial environments.
● The torque output range from 1900 Nm to 24000 Nm at 21 MPa provides strong adaptability across different machine sizes and operational requirements, from medium-duty equipment to large-scale industrial systems.
Why Helical Rotary Technology Matters in Industrial Motion Control
Helical rotary actuators like the WL30 Series are widely used because they offer a combination of high torque density, smooth motion control, and compact mechanical design. Unlike gear-based or rack-and-pinion systems that may introduce backlash or vibration, helical designs provide continuous engagement that enhances motion stability.
● The helical mechanism distributes load gradually across the gear surface, which significantly reduces wear and improves long-term operational reliability.
● Smooth rotational output allows for precise positioning control in applications where accuracy and repeatability are important under heavy load conditions.
● The compact internal structure enables higher torque output within a smaller installation footprint, which is critical for modern machine design where space optimization is essential.
Flexible Mounting Design for Multiple Industrial Systems
The WL30 Series is designed with both rear flange and front flange mounting configurations, allowing flexible integration into different types of mechanical systems without requiring major structural redesign. This versatility makes it suitable for both OEM equipment manufacturing and retrofit applications where compatibility with existing machine architecture is required.
● Rear flange mounting is commonly used in compact installations where space constraints require direct integration into machine frames or rotating assemblies.
● Front flange mounting is suitable for applications that require external load support or direct attachment to rotating structures such as arms, platforms, or equipment booms.
● The standardized mounting interface simplifies installation and reduces engineering time during system design and equipment assembly processes.
Rotation Capability: 180 Degree and 360 Degree Output Options
One of the key advantages of the WL30 Series is its ability to support both 180-degree and 360-degree rotation configurations, which allows it to serve a wide range of motion control requirements across different industries and machine types.
● 180-degree rotation is commonly used in applications that require directional control, oscillation, or limited-angle movement such as agricultural attachments and material handling equipment.
● 360-degree continuous rotation is suitable for systems requiring full circular motion, such as industrial machinery, marine equipment, and specialized rotating platforms.
● The ability to configure rotation angles provides engineers with greater flexibility in system design and improves adaptability across multiple application scenarios.
Where Is the WL30 Series Commonly Used Across Industries?
The WL30 Series hydraulic rotary actuator is widely adopted across multiple heavy-duty industries due to its high torque capability, robust structure, and adaptable design. Its versatility allows it to be integrated into a broad range of mechanical systems where reliable rotary motion is required.
● In agriculture, it is used in harvesting machinery, material handling systems, and heavy farm equipment requiring controlled rotational movement under variable field conditions.
● In construction, it is applied in excavator attachments, lifting systems, and rotating work platforms where durability and torque stability are essential.
● In energy applications, it is used in equipment that requires controlled rotation under continuous load, including support machinery for industrial energy systems.
● In marine environments, it supports winches, deck machinery, and steering-related systems where corrosion resistance and stability are critical.
● In mining operations, it is used in heavy-duty machinery exposed to dust, vibration, and high mechanical stress conditions.
● In truck and trailer systems, it is applied in tipping mechanisms, rotating platforms, and cargo handling equipment.
● In military applications, it is used in specialized vehicles and equipment requiring robust, reliable, and low-maintenance hydraulic motion systems.
Performance Advantages in Real-World Operation
The WL30 Series is not only designed for high torque output but also optimized for long-term operational efficiency, reduced maintenance requirements, and stable performance under continuous use conditions.
● High torque density allows smaller actuator sizes to deliver powerful rotational force, improving overall machine design efficiency.
● Stable hydraulic performance ensures consistent motion control even under variable load and pressure fluctuations.
● Reduced mechanical complexity compared to traditional rotary systems lowers maintenance frequency and improves equipment uptime.
● Long service life design reduces replacement cycles and improves overall cost efficiency for equipment operators.
Why the WL30 Series Is Suitable for Modern Heavy Machinery Design
Modern industrial machinery increasingly requires compact, high-performance hydraulic systems that can deliver multiple functions within limited installation space while maintaining high durability and reliability. The WL30 Series meets these requirements by combining rotary motion, load-bearing capability, and compact design into a single integrated solution.
● It supports modern machine architectures that prioritize efficiency, modular design, and reduced system complexity.
● It enables manufacturers to improve equipment performance without significantly increasing system size or weight.
● It provides a reliable alternative to more complex mechanical transmission systems, reducing engineering constraints during product development.
FAQ
1. What is the main function of the WL30 Series hydraulic rotary actuator?
The WL30 Series is designed to provide high-torque rotational motion for heavy-duty machinery in harsh environments, replacing traditional mechanical rotation systems with a compact hydraulic solution.
2. What torque range does the WL30 Series support?
The WL30 Series delivers torque output ranging from 1900 Nm up to 24000 Nm at 21 MPa, making it suitable for both medium and heavy-duty industrial applications.
3. What industries commonly use the WL30 Series?
It is widely used in agriculture, construction, energy, marine, mining, material handling, truck and trailer systems, and military equipment due to its durability and high torque performance.
