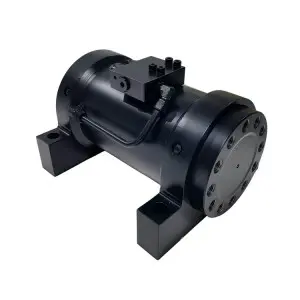

The Hydraulic Rotary Actuator Helical WL30 Series is designed for applications that require powerful rotary motion, high load capacity, and long-term reliability under demanding operating conditions. Combining a compact hydraulic structure with helical gear technology, the WL30 Series delivers smooth and controlled rotation for industrial, marine, drilling, mining, and heavy equipment systems.
As industries continue moving toward more efficient and compact hydraulic systems, rotary actuators are becoming increasingly important in equipment design. The WL30 Series addresses this demand by providing high torque output, structural strength, and precise rotational control in a single integrated unit.
What Is a Hydraulic Rotary Actuator?
A hydraulic rotary actuator converts hydraulic pressure into rotary motion. Unlike hydraulic cylinders that generate linear movement, rotary actuators are designed to rotate components directly, making them ideal for equipment that requires angular positioning or continuous controlled rotation.
The WL30 Series uses a helical gear mechanism to transfer hydraulic force into smooth rotational movement. This design improves torque transmission while reducing vibration and mechanical shock during operation.
Because of its integrated structure, the WL30 Series can replace more complex mechanical assemblies, simplifying hydraulic system layouts and improving overall equipment efficiency.
Why Helical Rotary Actuator Technology Matters
Helical rotary actuator technology offers several advantages over conventional rotation systems.
● Smoother torque transmission
The helical gear structure distributes force more evenly, reducing impact loads and vibration.
● Higher torque output in compact dimensions
Helical systems allow greater torque density without significantly increasing actuator size.
● Improved operational precision
Smooth rotational movement enhances control accuracy during positioning tasks.
● Reduced mechanical wear
Balanced load distribution minimizes stress on internal components.
● Better performance under heavy loads
The design maintains stable operation even in demanding industrial environments.
These advantages make the WL30 Series suitable for applications where stability and reliability are critical.
Key Features of Hydraulic Rotary Actuator Helical WL30 Series
The WL30 Series is engineered for high-performance industrial use and offers several important technical benefits.
● High torque output
Designed to handle heavy-duty rotational tasks in industrial and mobile equipment.
● Compact integrated structure
Combines rotary drive and load-bearing capability in one unit.
● Strong load-bearing capacity
Supports both radial and axial loads for stable operation.
● Precise rotational control
Ensures accurate positioning and smooth motion.
● Durable construction for harsh environments
Built to withstand vibration, impact, and continuous operation.
● Long service life
Optimized engineering reduces internal wear and improves durability.
Industrial Applications of WL30 Series
The Hydraulic Rotary Actuator Helical WL30 Series is widely used across multiple industries due to its versatility and reliable performance.
Mining Equipment
Mining machinery operates under high loads and extreme conditions. The WL30 Series provides stable rotation for equipment arms, positioning systems, and material handling components.
Drilling Equipment
In drilling rigs, accurate and controlled rotation is essential. The WL30 actuator supports drilling system alignment and positioning while maintaining stable torque output.
Marine Systems
Marine applications require corrosion resistance and vibration durability. The WL30 Series powers winches, steering systems, and deck equipment in offshore and onboard environments.
Construction Machinery
Excavators, loaders, and heavy construction equipment use the WL30 Series for attachment control and rotary positioning tasks.
Material Handling Systems
Industrial lifting and handling systems benefit from the actuator’s smooth rotational control and high load capacity.
How the WL30 Series Improves Equipment Performance
Modern industrial equipment requires both efficiency and reliability. The WL30 Series contributes to improved system performance in several ways.
● Reduces system complexity
The integrated actuator structure eliminates the need for multiple mechanical components.
● Enhances motion stability
Smooth hydraulic rotation improves overall operational consistency.
● Improves equipment precision
Accurate rotary control increases positioning accuracy.
● Minimizes maintenance downtime
Durable construction reduces service frequency and unexpected failures.
● Supports continuous-duty operation
Suitable for applications requiring long operating cycles.
Structural Advantages of the WL30 Series
The WL30 Series is designed with durability and operational stability as core priorities.
Reinforced Housing Design
The actuator housing is engineered to withstand high-pressure environments, external impacts, and continuous vibration.
Integrated Bearing System
The built-in bearing structure improves load handling capability and eliminates the need for additional external support components.
Advanced Sealing Technology
The sealing system protects internal components from contamination caused by dust, moisture, mud, or corrosive environments.
Optimized Hydraulic Efficiency
The actuator maintains stable hydraulic response while minimizing energy loss during operation.
Suitable for Harsh Operating Conditions
Industrial equipment often works in environments where standard components may fail prematurely. The WL30 Series is designed to maintain performance under difficult conditions.
● Heavy shock loads
● Continuous vibration
● Outdoor exposure
● High humidity environments
● Dust and debris contamination
● Long-duration working cycles
Its rugged design helps maintain reliability even in applications with high operational stress.
Why Compact Hydraulic Rotary Actuators Are Increasingly Important
As machinery design evolves, manufacturers are looking for solutions that reduce space requirements while maintaining high performance.
The WL30 Series supports this trend by offering:
● High torque density in compact dimensions
● Reduced installation space requirements
● Simplified hydraulic layouts
● Improved equipment weight distribution
● Greater flexibility in system design
This makes the actuator especially valuable in modern mobile and industrial equipment.
Long-Term Value of the WL30 Series
For industrial operators, long-term reliability is just as important as immediate performance.
The WL30 Series helps reduce total operating costs through:
● Lower maintenance requirements
● Extended service life
● Reduced component replacement frequency
● Improved operational efficiency
● Consistent long-term performance
These factors contribute to better equipment uptime and higher productivity.
Future Development of Hydraulic Rotary Actuators
As industries continue adopting automation and advanced hydraulic systems, the demand for reliable rotary actuators will continue to grow.
The Hydraulic Rotary Actuator Helical WL30 Series is well positioned for future applications due to its combination of torque performance, compact structure, and environmental durability.
Industries increasingly require hydraulic solutions that provide precise motion control while remaining robust enough for heavy-duty use. The WL30 Series meets these expectations across multiple application sectors.
Conclusion
The Hydraulic Rotary Actuator Helical WL30 Series is a powerful and versatile rotary motion solution designed for demanding industrial applications. With its helical gear technology, high torque output, compact structure, and durable construction, it delivers stable and reliable performance across a wide range of industries.
From mining and drilling to marine systems and construction equipment, the WL30 Series provides efficient rotary control while reducing maintenance requirements and improving operational reliability.
For companies seeking a dependable hydraulic rotary actuator capable of handling harsh conditions and heavy loads, the WL30 Series offers a practical and long-lasting solution.
FAQ
- What is the WL30 Series hydraulic rotary actuator used for?
It is used for heavy-duty rotary motion applications in mining, drilling, marine, and industrial equipment. - What are the advantages of helical rotary actuator technology?
It provides smoother rotation, higher torque density, reduced vibration, and improved durability. - Can the WL30 Series operate in harsh environments?
Yes, it is designed for high-load, high-vibration, and corrosive operating conditions. - Does the WL30 Series require frequent maintenance?
No, its durable structure and optimized design help reduce maintenance requirements.
