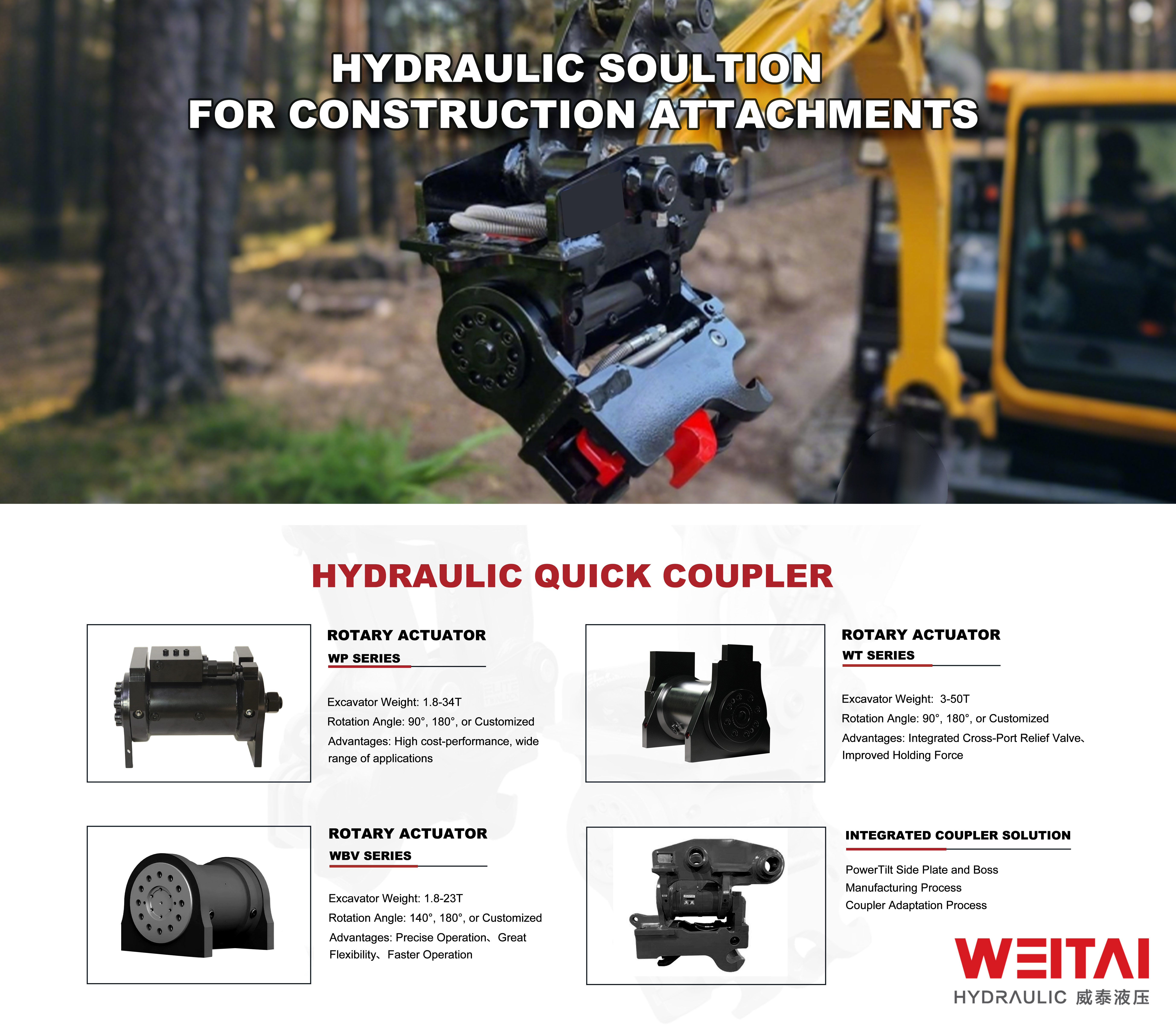

What Is a Hydraulic Tilt Actuator and How Does It Work?
A hydraulic tilt actuator—often called a rotary actuator or swing cylinder—is a compact hydraulic component that converts hydraulic pressure into smooth rotational motion. In excavator quick coupler applications, it enables attachments to tilt left and right up to ±90° (180° total), allowing operators to perform grading, sloping, ditching, and precise positioning without moving the machine.
Unlike traditional cylinders that push in a straight line, rotary actuators produce direct rotary force in a much smaller package. This makes them ideal for quick coupler designs where space is tight and weight is critical.
For OEM manufacturers, choosing the right hydraulic tilt actuator directly affects your product’s performance, durability, and customer satisfaction.
Why Are Quick Coupler Manufacturers Struggling with Long Lead Times?
Many actuator suppliers quote delivery times of 20 to 25 weeks—sometimes even longer. For a quick coupler manufacturer, that means your own production stalls, new model launches get delayed, and you lose the flexibility to respond to sudden market demand.
When you are waiting half a year for a single component, your entire supply chain becomes a bottleneck. Your customers grow impatient, and your competitors who use more responsive suppliers gain an edge.
WEITAI delivers your first order in 30-35 days. For repeat orders with agreed forecasting, we can hold buffer stock and ship in 3-7 days. We are also piloting local warehousing in Australia to further cut delivery times for the Asia-Pacific region.
How Much Can You Save by Switching Tilt Actuator Suppliers?
Price is always a factor, but the real question is: are you paying for performance or just for a brand name?
Established suppliers often charge premium prices that reflect decades of branding, not superior engineering. Quick coupler manufacturers routinely pay more than double what comparable actuators would cost from alternative sources—yet they receive no faster delivery, no extra technical support, and no design flexibility.
By streamlining manufacturing and eliminating unnecessary markups, WEITAI offers hydraulic tilt actuators at less than half the price of traditional brands. And we do not compromise on materials, precision, or testing.
Here is a simple example: if you sell 500 units of a single quick coupler model per year, switching to WEITAI can save you over $300,000 annually on that model alone. That saving goes straight to your bottom line—or funds your next R&D project.
Can You Customize Rotation Angles and Mounting for My Quick Coupler Design?
Yes. Unlike many suppliers who refuse to modify their standard products, WEITAI welcomes custom specifications. We understand that your quick coupler may require a specific rotation angle, a non standard mounting interface, different port locations, or alternative sealing materials.
Our engineering team works directly with your designers to adapt our actuator precisely to your geometry and performance targets. This enables you to:
Develop new attachment models with unique features
Upgrade existing designs without costly re-tooling
Avoid carrying obsolete inventory that does not fit your new designs
Customization is not an extra service for us—it is part of how we partner with OEMs.
What About Backlash, Nitriding, and Long‑Term Precision?
Quick coupler engineers often ask three technical questions. Here are our answers:
We maintain backlash ≤ 1.5° (max 2°) even after 200,000 cycles. This is achieved through precision gear cutting, strict heat treatment control, and selecting materials that resist wear. The result is responsive, precise tilting throughout the actuator’s service life.
Our controlled nitriding process produces a hardened layer of 0.28‑0.37mm depth with a smooth hardness transition curve—no sudden drop‑offs. This uniform case hardening resists abrasive wear and prevents pitting, keeping gear teeth intact for longer.
We use advanced cleaning and inspection protocols. After 200,000 cycles, our cylinder bores show zero visible residue on white‑cloth wiping, and oil samples contain no metal particles. Contamination is eliminated at the source, protecting your customers’ entire hydraulic system.
What After‑Sales Support Can You Expect?
Slow, bureaucratic after‑sales service is a major frustration for OEMs. When an actuator fails in the field, every day of downtime costs your end‑user money—and damages your brand reputation.
WEITAI responds to all service requests within 24 hours—not days or weeks. Our support includes:
Real‑time video diagnostic calls to assess issues remotely
Spare parts provisioning based on your order volume, so critical components are ready when needed
Flexible resolution paths, from fast replacement to on‑site guidance
Dedicated account support for key partners
This level of responsiveness keeps your customers productive and your repeat orders flowing.
Why Choose WEITAI as Your Hydraulic Tilt Actuator Partner?
We are not just a component supplier—we are a long‑term engineering partner for quick coupler manufacturers. Our partnership model includes:
No minimum order quantity (MOQ) – start with sample testing and scale at your pace
Sample testing with engineering support – evaluate our product in your actual application with minimal risk
Technical collaboration – our engineers help optimize your design for manufacturability and cost
Flexible logistics – direct shipping or local warehousing options
Volume incentives – preferential payment terms and priority scheduling for committed partners
We have already helped leading attachment manufacturers across Australia, Europe, and North America reduce procurement costs, shorten supply chains, and bring better products to market faster.
Ready to Switch? Here’s How to Start.
It is simple. Email us your actuator drawings or performance requirements. Our engineering team will review them and provide:
A detailed quotation with price and delivery timeline
A customized specification matching your needs
A sample test proposal (no MOQ required)
We aim to send you a complete proposal within 48 hours.
[Link to Contact Page / Request a Quote]
[Link to Product Page – WBV Series]
A: Our actuators have successfully passed 200,000+ cycles with all key parameters—backlash, leakage, rotation accuracy, and seal integrity—remaining within design specifications.
A: First orders: 30‑35 days. For repeat orders with buffer stock: 3‑7 days.
A: Yes. Our WBV series is designed for full interchangeability with the most common industry standards, including self‑lubrication and compact dimensions. You can switch without redesigning your quick coupler.
A: We typically offer 50% or more in cost savings while maintaining equal or better quality and performance.
A: Yes. We can customize angles, mounting interfaces, port positions, and sealing materials to your exact needs.
A: We perform 200,000+ cycle endurance tests, pressure hold tests, seal integrity checks, and contamination analysis on every design.
A: We respond to all service requests within 24 hours and offer remote video diagnostics for rapid issue resolution.
A: No. We support sample orders with no MOQ so you can test with confidence.
