1. Executive Summary & Engineering Focus

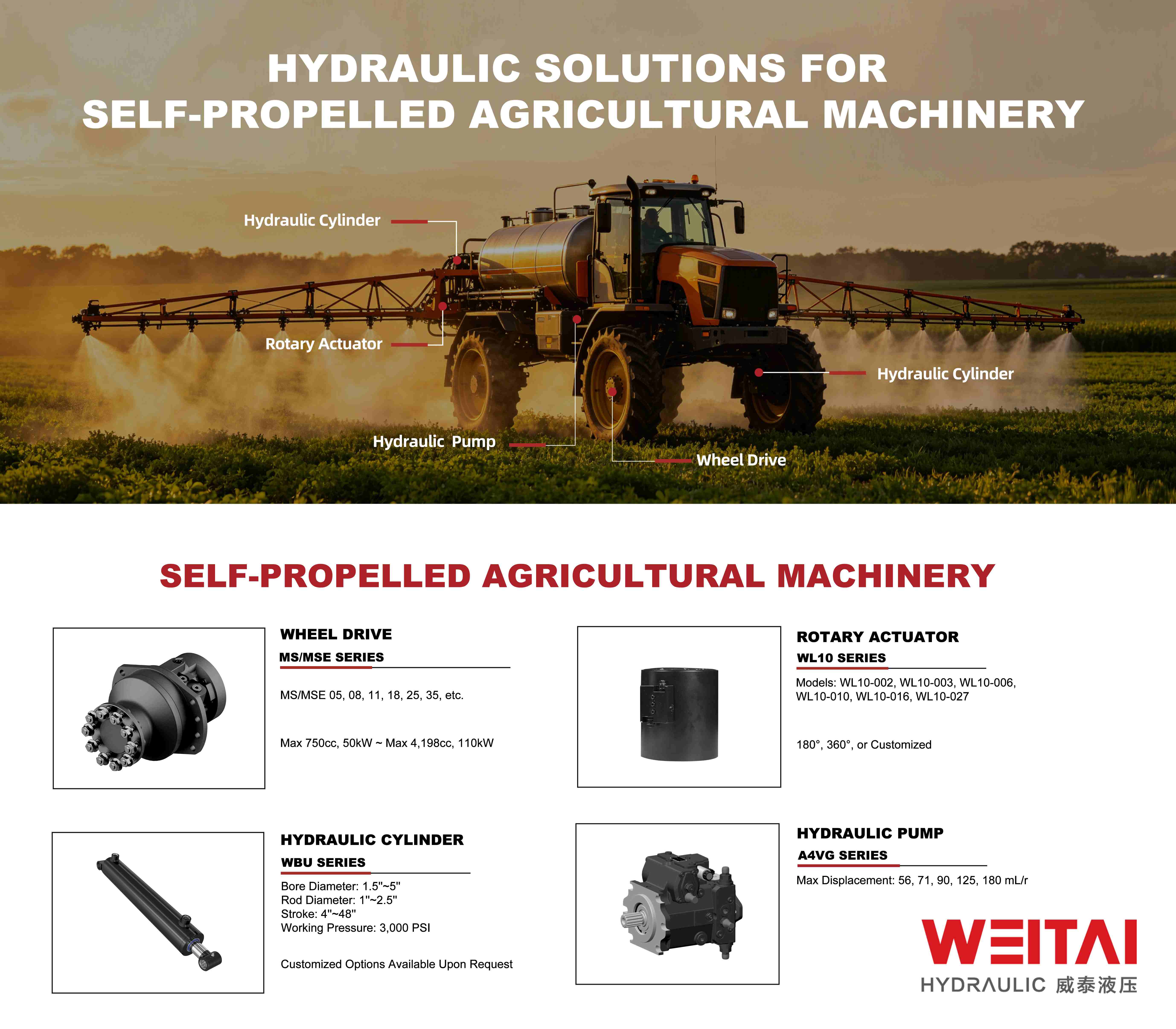

Self-propelled field machinery—including high-clearance sprayers, self-propelled spreaders, harvesters, and specialized utility tractors—presents severe mechanical challenges for rotational motion. Conventional pivot designs relying on standard linear hydraulic cylinders, external crank arms, and exposed pivot pins suffer from joint play, hydraulic drift, structural fatigue, and pin wear.
WEITAI WL10 Series Helical Hydraulic Rotary Actuators replace complex external linkages with a compact, fully enclosed, high-torque rotational power unit engineered specifically for demanding agricultural environments.
2. Core Operational Problems Solved in Agricultural Applications
Problem 1 Eliminating Hydraulic Drift & Boom Sag (Zero-Drift Mechanical Lock)
The Application Challenge:
When operating wide spray booms (24 to 48 meters), standard linear cylinders experience internal valve spool bypass or seal micro-leakage. Over time, this causes boom arms to sag or drift out of position during high-speed spraying, resulting in uneven chemical application or crop contact.
The WL10 Solution:
The WL10 Series utilizes internal helical splines to convert linear piston motion into high rotational torque. Multiple precision helical gear teeth remain continuously engaged, acting as an internal mechanical lock. Combined with integrated load-holding valves, the WL10 eliminates dynamic drift and keeps spray booms locked in position.
Problem 2 Eliminating Exposed Linkages in Abrasive Environments (Fully Enclosed Design)
The Application Challenge:
Traditional cylinder pivots require external linkages, cranks, and pivot pins. Soil particles, liquid fertilizers, and pesticide sprays mix with lubricating grease on exposed pins, creating an abrasive slurry that accelerates pin slop and bushing failure.
The WL10 Solution:
The WL10 packages both the hydraulic drive and heavy-duty output bearings into a sealed cylindrical housing. Removing external linkages, cranks, and exposed cylinder rods prevents contamination from mud, chemical spray, and crop residue. This removes routine pin greasing and reduces maintenance downtime during critical operating windows.
Problem 3 Absorbing Severe Dynamic Shock Loads (High Holding Torque)
The Application Challenge:
Traveling over unpaved field ruts at speeds up to 30 km/h causes cantilevered boom arms to generate violent moment loads. Single-pin cylinder mounts concentrate these stress spikes onto narrow points, leading to bracket fatigue, pin bending, or weld failure.
The WL10 Solution:
Helical rotary actuators distribute load forces evenly across 360 degrees of internal gear engagement rather than concentrating stress on a single pin. This design absorbs high shock loads and protects the vehicle’s primary chassis frame from fatigue cracking.
Problem 4 Achieving Large Rotation Angles in Tight Chassis Envelopes
The Application Challenge:
Achieving 180° or 360° rotation with linear cylinders requires long lever arms and clearance arcs that interfere with vehicle tires, chassis tanks, and highway transport boundaries.
The WL10 Solution:
The WL10 outputs pure rotational torque directly along its center axis. This compact footprint allows equipment designers to execute 180° boom wing folding, 360° steering pivots, or cabin rotation within tight transport dimensions required for road travel.
Problem 5 180° Horizontal Breakaway & Obstacle Impact Protection
The Application Challenge:
Outer boom sections frequently collide with trees, fence posts, or terrain contours, risking structural breakage if the hinge cannot yield quickly.
The WL10 Solution:
Integrated into the boom breakaway hinge, the WL10 permits controlled 180° horizontal breakaway upon obstacle impact. Once clear of the obstruction, the actuator hydraulically repositions the boom to its exact working position without requiring the operator to leave the cab.
3. Technical Overview: WEITAI WL10 Series
The WL10 Series features standardized mounting interfaces and high torque-to-weight ratios engineered for OEM integration.
| Model | Standard Rotation | Primary Application Interface | Core Technical Advantage |
|---|---|---|---|
| WL10-002 | 180° / 360° / Custom | Auxiliary boom latches, crop dividers | Compact envelope, immediate hydraulic response |
| WL10-003 | 180° / 360° / Custom | Secondary boom fold joints, shield lifts | High holding torque, zero backlash position lock |
| WL10-006 | 180° / 360° / Custom | Primary inner boom hinges, toolbars | High radial load support, sealed against dust |
| WL10-010 | 180° / 360° / Custom | Heavy sprayer boom main folds, track steering | Eliminates external linkages, absorbs shock loads |
| WL10-016 | 180° / 360° / Custom | Master boom pivots, steerable axles | Extreme holding torque, high bending moment support |
| WL10-027 | 180° / 360° / Custom | Heavy harvester headers, frame articulation | Maximum torque capacity for heavy agricultural frames |
4. OEM Sourcing & Customization Capabilities
Custom Shafts & Mounts: Tailored bolt patterns, splined shafts, flanged outputs, and integrated pin mounts designed to align with existing vehicle chassis weldments.
Integrated Hydraulic Valving: Direct-mounted counterbalance valves, cross-over relief valves, and flow control manifolds ensure smooth acceleration and holding under load.
Corrosion Protection: Industrial polyurethane coatings and specialized plating on exposed rotating interfaces resist fertilizer and chemical corrosion over multi-year operational lifespans.
